Product Details:
|
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Voltage: | 220V | Material: | 304 Stainless Steel |
| Type: | Mini Pasteurizer Machine,Water-cooled | Processing: | Pasteurizing |
| Sterilization Temperature: | 60~99 Centigrade (Adjustable) | Product Name: | Mini Milk Pasteurization Machine |
| High Light: | 300L Small Pasteurization Machine,300L Small Milk Pasteurizer,Electric Heating Small Milk Pasteurizer |
||

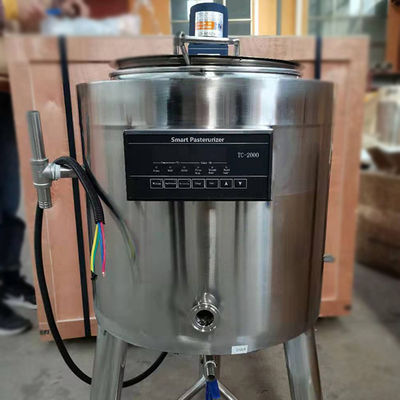

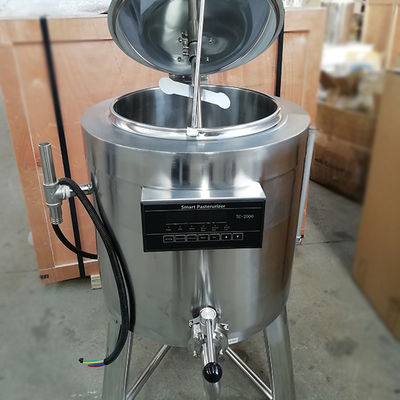

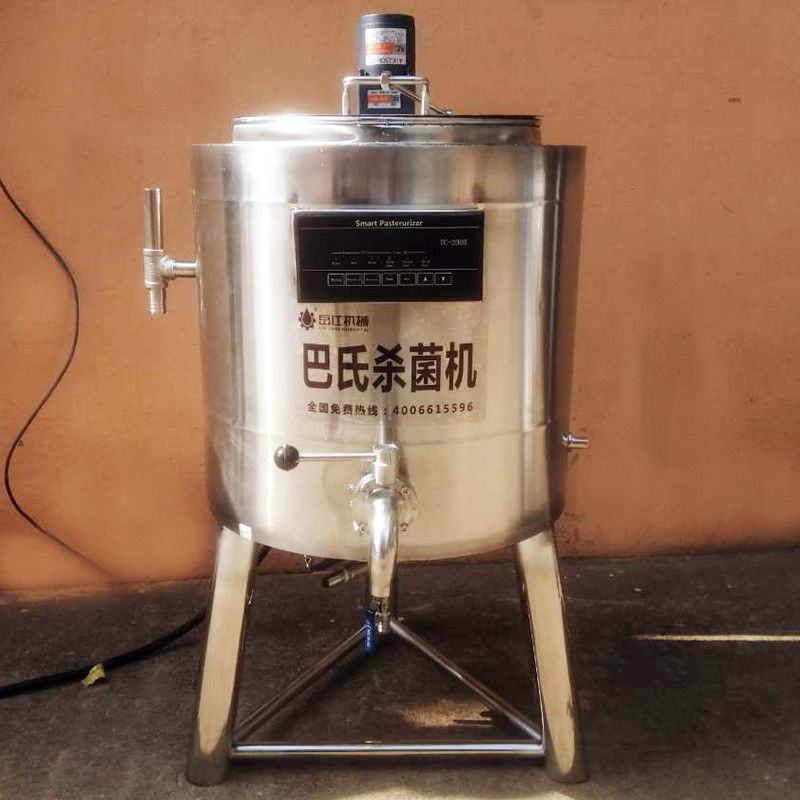

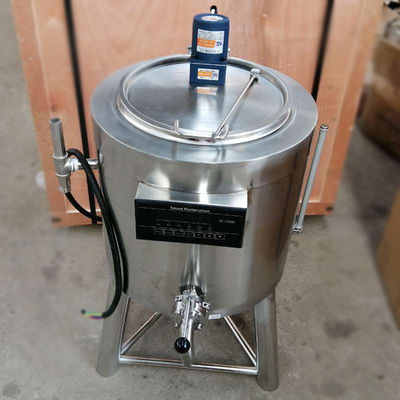

Electric heating 304 stainless steel milk pasteurizer machine
Specification:
Milk pasteurizer is stainless steel equipment with heating function. This device can heat milk to a suitable temperature and keep this temperature for a certain period of time. This is in order to kill all the unwanted bacterium in milk and extend milk’s shelf life.
Technical Parameters:
| Model | BS-100L | BS-150L |
| Internal diameter | 500mm | 640mm |
| Output | 100kg/time | 150kg/time |
| Material | SUS304 | SUS304 |
| Thickness | 1.5 mm | 1.5 mm |
| Height | 1650mm | 1650mm |
| Sterilization time | 5-40min(adjustable) | 5-40min(adjustable) |
| Sterilization temperature | 50-99°C | 50-99°C |
| Voltage | 380V/50Hz | 380V/50Hz |
| Rate of refrigeration compressor | 3kw | 3kw |
| Heat source | electric heating | electric heating |
| Heat up | 25-35minute | 25-35minute |
| Power | 13kw | 16kw |
| Contour dimension | 1700x1000x1710mm | 1700x1000x1710mm |
Description:
The machine Features of milk pasteurizer :
1.The machine materials full stainless steel of 304;
2.Good affectivity of pasteurization, lose noise, speed can adjustable;
3.Automatic temperature controller system, easy to operation;
4.Have the cooling system, can cool milk and juice after pasteurization;
5.The tank have three layers: milk layer, hot water pasteurization layer and keep warm layer
Components:
Compressor, water tank, milk tank, circulating water pump, foundation, water cycle tank and milk tank. There are two layer of water cycle tank; one is up, the other one is down. Up layer cool water , down layer hot water, water cycle through by water pump come and out.
Work Principle

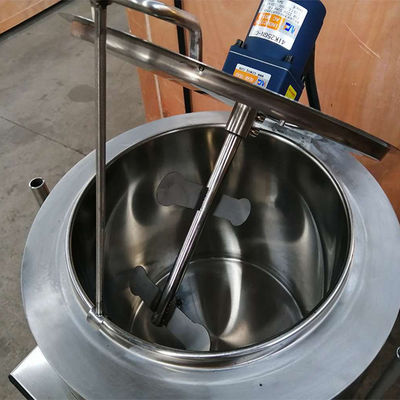

The water temperature and the temperature of the milk is set up, the water temperature exceeds the seted temperature of circulating water sterilization layer into cold water to reduce the temperature of the milk sterilization machine, when the water temperature is too low circulating water pump into the hot water, improve water temperature, the water temperature maintained at the set temperature. Milk tank above the stirring device, through agitating device for agitating milk to make the milk heat evenly.
Packing:
Machines would be packed up well with plywooden case,which can gurantee no damage during the transportation.The shipping method depends on our customer requirements.We can do air door delivery by DHL/FedEx,or to the airport only,as well as shipping to the port or the door step by sea.Just tell us your demand and we would meet all your requirements.
Our company:
Shandong yuejiang machinery co., ltd. is a full range of products suppliers ranch, professional ranch to provide a complete set of cattle management programs and values Reliable after - sales service.The quick release type of milking machine, fishbone type scaffolding and special vacuum pump are independently manufactured by our company At the same time, our company also produces milking machine, feed mixer, livestock and poultry solid liquid manure separator, cow neck flail, cow bed rest,Fresh milk cooling tank and other parts.If you need any of these products, please contact us.
Certifications :
We have CE and ISO9001 certification for milking machine and related farm equipment.
Exhibition and international trade:
Our products have been exported to Malaysia, Indonesia, Mongolia, Jordan, South America, Libya, etc. Welcome friends from home and abroad to visit our company or negotiate with us. We will participate in Russian and Indian exhibitions every year.
